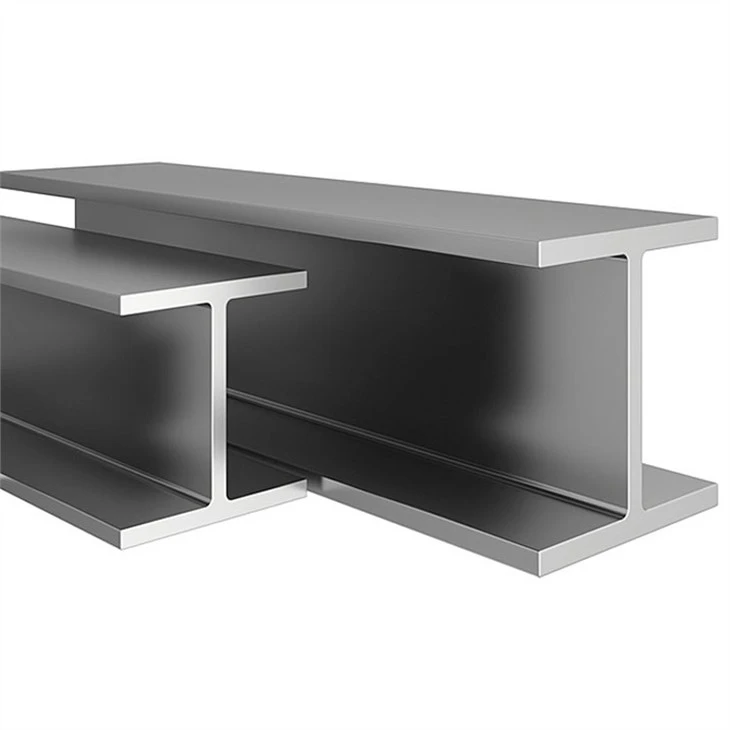

H-gwo bout bwa

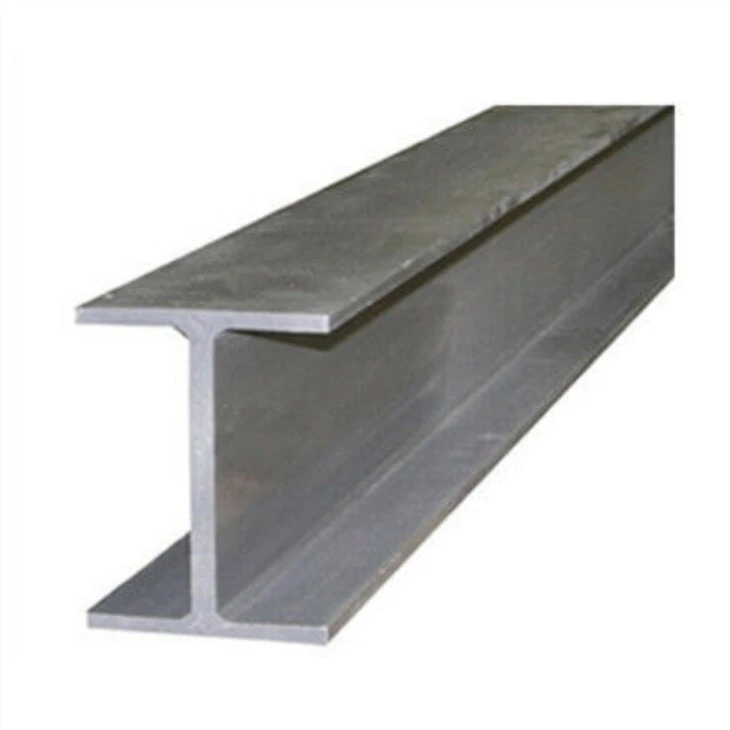

H Steel travès HEA/HEB se yon kalite pwofil asye trè souvan itilize. Travès, otreman yo rele "H" seksyon, travès kontinantal, oswa HEA/HEB, yo disponib nan plizyè klas materyèl, ki pi komen yo se EN 10025 S275, ak S355. Seksyon H yo sanble ak seksyon I yo, men bride a pi laj.

Voye rechèch

Pwodwi Entwodiksyon

Gwosè Egzanp Travès HEA&HEB

Gwosè travès HEA, ak pwopriyete mekanik

Gwosè travès HEA					Pwa (kg/m)	Zòn Seksyon (cm2)
b	h	a	e	r
HEA 100	96	5,0	8,0	12	16,7	21,24
HEA 120	114	5,0	8,0	12	19,9	25,34
HEA 140	133	5,5	8,5	12	24,7	31,42
HEA 160	152	6,0	9,0	15	30,4	38,77
HEA 180	171	6,0	9,5	15	35,5	45,25
HEA 200	190	6,5	10,0	18	42,3	53,83
HEA 220	210	7,0	11,0	18	50,5	64,34
HEA 240	230	7,5	12,0	21	60,3	76,84
HEA 260	250	7,5	12,5	24	68,2	86,82
HEA 280	270	8,0	13,0	24	76,4	97,26
HEA 300	290	8,5	14,0	27	88,3	112,5
HEA 300	310	9,0	15,5	27	97,6	124,4
HEA 300	330	9,5	16,5	27	105,0	133,5
HEA 300	350	10,0	17,5	27	112,0	142,8
HEA 300	390	11,0	19,0	27	125,0	159,0
HEA 300	440	11,5	21,0	27	140,0	178,0
HEA 300	490	12,0	23,0	27	155,0	197,5
HEA 300	540	12,5	24,0	27	166,0	211,8
HEA 300	590	13,0	25,0	27	178,0	226,5
HEA 300	640	13,5	26,0	27	190,0	241,6
HEA 300	690	14,5	27,0	27	204,0	260,5
HEA 300	790	15,0	28,0	30	224,0	285,8
HEA 300	890	16,0	30,0	30	252,0	320,5
HEA 300	990	16,5	31,0	30	272,0	346,8

Gwosè travès HEB, ak pwopriyete mekanik

Gwosè gwo bout bwa HEB					Pwa (kg/m)	Zòn Seksyon (cm2)
b	h	a	e	r
HEB 100	100	6,0	10,0	12	20,4	26,04
HEB 120	120	6,5	11,0	12	26,7	34,01
HEB 140	140	7,0	12,0	12	33,7	42,96
HEB 160	160	8,0	13,0	15	42,6	54,25
HEB 180	180	8,5	14,0	15	51,2	65,25
HEB 200	200	9,0	15,0	18	61,3	78,08
HEB 220	220	9,5	16,0	18	71,5	91,04
HEB 240	240	10,0	17,0	21	83,2	106,0
HEB 260	260	10,0	17,5	24	93,0	118,4
HEB 280	280	10,5	18,0	24	103,0	131,4
HEB 300	300	11,0	19,0	27	117,0	149,1
HEB 300	320	11,5	20,5	27	127,0	161,3
HEB 300	340	12,0	21,5	27	134,0	170,9
HEB 300	360	12,5	22,5	27	142,0	180,6
HEB 300	400	13,5	24,0	27	155,0	197,8
HEB 300	450	14,0	26,0	27	171,0	218,0
HEB 300	500	14,5	28,0	27	187,0	238,6
HEB 300	550	15,0	29,0	27	199,0	254,1
HEB 300	600	15,5	30,0	27	212,0	270,0
HEB 300	650	16,0	31,0	27	225,0	286,3
HEB 300	700	17,0	32,0	27	241,0	306,4
HEB 300	800	17,5	33,0	30	262,0	334,2
HEB 300	900	18,5	35,0	30	291,0	371,3
HEB 300	###	19,0	36,0	30	314,0	400,0

Pwodwi Deskripsyon

Fòm nan koup transvèsal se menm jan ak yon pwofil koup transvèsal ekonomik nan lèt laten kapital kapital la H, ke yo rele tou travès asye inivèsèl. Seksyon transvèsal la nan asye ki gen fòm H anjeneral gen ladan de pati, entènèt la ak bride a, konnen tou kòm ren ak kwen an.

Se gwo bout bwa H lajman ki itilize, sitou itilize nan: divès kalite estrikti bilding sivil ak endistriyèl; divès kalite plant endistriyèl gwo-span ak bilding modèn ki wo, espesyalman plant endistriyèl nan zòn ki gen aktivite sismik souvan ak kondisyon travay wo-tanperati; mande gwo kapasite pote ak koup transvèsal Gwo pon ki gen bon estabilite ak gwo span; ekipman lou; gran wout; vye zo eskèlèt bato; sipò mwen; tretman fondasyon ak jeni baraj; divès kalite konpozan machin.
